15Amp Latching Push Botton Switch 2PCS,16mm(0.63”) 12V-24V Black Shell AC/DC IP67 Waterproof with Red LED Angel Eye Light On and Off with Wire Socket.
US$4.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by askcindyhow.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$4.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by askcindyhow.com
Free 30-day returns Details
Product details
| Management number | 250053620 | Release Date | 2026/09/17 | List Price | US$4.00 | Model Number | 250053620 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【 Super Value Double Set 】 You will receive a set of 2 16mm push-button switches at a more favorable price. The rated parameters of the switch are 15A/250V AC. The working voltage of the LED indicator light is 12-24V DC/AC. The installation hole diameter is 16mm (5/8 inches), and it adopts a self-locking design: press to connect and lock, then press to power and reset

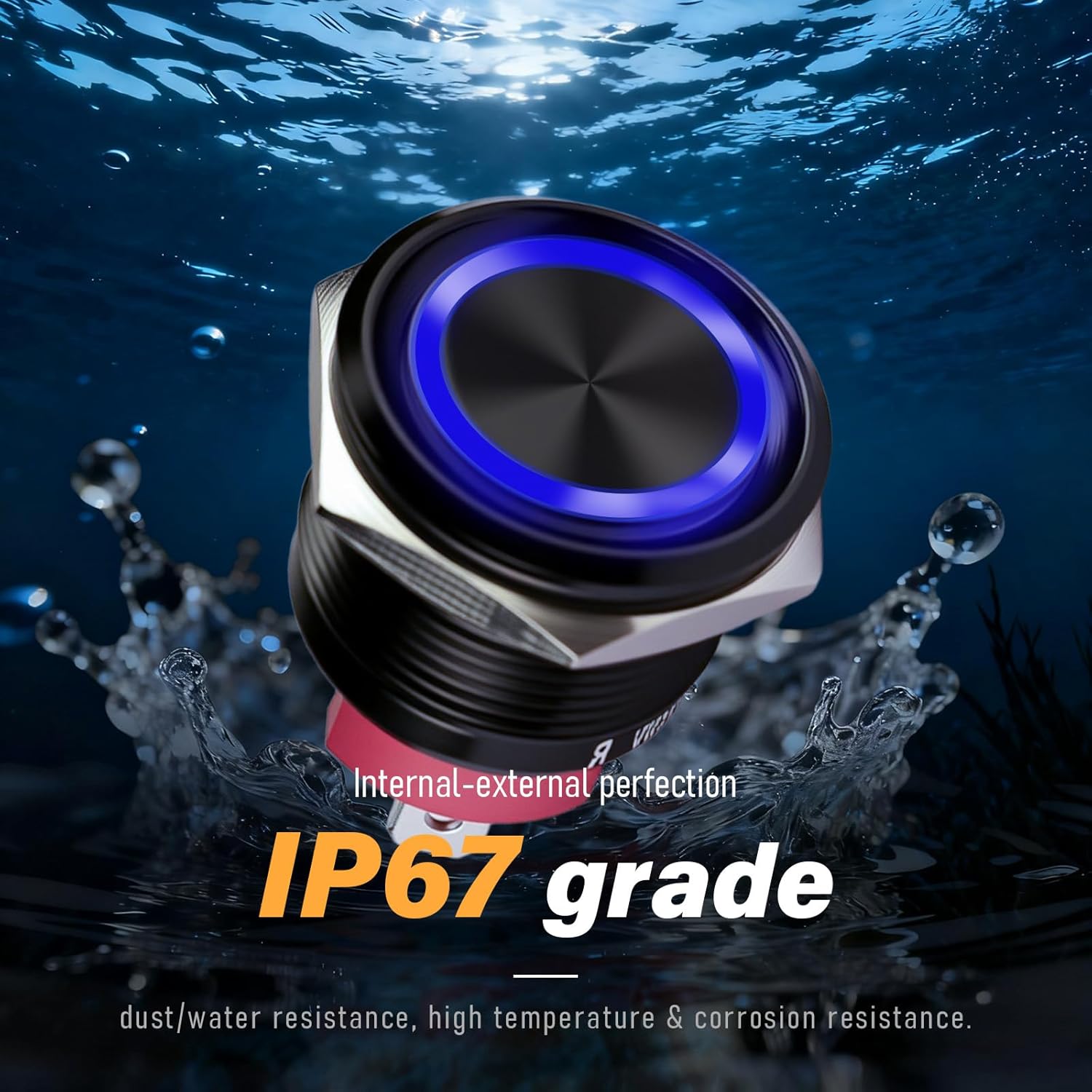

- 【IP67 Waterproof Switch 】 The product has passed the CE certification and reached the IP67 protection level, making it fearless in harsh environments with high humidity and dust. The fully sealed structure, combined with the alumina shell, offers excellent durability and corrosion resistance.
- 【 Long-lasting LED】 The switch guide ring adopts a special optical design and is equipped with a transparent cover, which makes the light distribution more uniform and the recognition higher. The built-in LED has a lifespan of up to 40,000 hours, is compatible with both AC and DC power, and has no polarity requirements. The mechanical structure can withstand more than one million operations.
- 【 High-quality Contacts 】 The interior adopts silver alloy contacts and SPST single-pole single-throw (normally open) structure. Equipped with a high-current terminal block of 4.8mm×0.8mm. The green wire is connected to the equipment circuit, and the red and black wires (LED power lines, non-polar) are connected to the power supply
- 【 Safe Packaging and wide Application 】Each switch is carefully packaged to ensure safe transportation. The set includes: 2 16mm push-button switches + 2 1.5mm², 15cm long wiring sockets. It is widely applicable to scenarios such as computer hosts, Marine equipment, automotive circuits and household appliances.
| ASIN | B0FVC9R3C3 |
|---|---|
| Color | Red |
| Terminal | Solder |
| Brand Name | LANGIR |
| Unit Count | 2.11 Count |
| Part Number | B-R-16-Y-ZS |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Manual |
| Manufacturer | LANGIR Electric Co.,Ltd. |
| Material Type | alumina |
| Mounting Type | Snap In Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 15 A |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 3.54 x 3.54 x 1.57 inches |
| Number of Items | 2 |
| Contact Material | Silver |
| Operating Voltage | 12 volts |
| Specification Met | CE |
| Compatible Devices | Computer hosts, Marine equipment, Automotive circuits, Household appliances |
| Included Components | 2PCS Push Button |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 60 °C |
| Compatible with Vehicle Type | Various Vehicles |
| International Protection Rating | IP67 |
