2-Channel High-Speed Opto-Isolator Module, 10MHz 3.3V/5V Logic Level Converter with PWM Signal & 5000Vrms Isolation for Industrial Control, Arduino, ESP32, PLC (1, No Terminal)

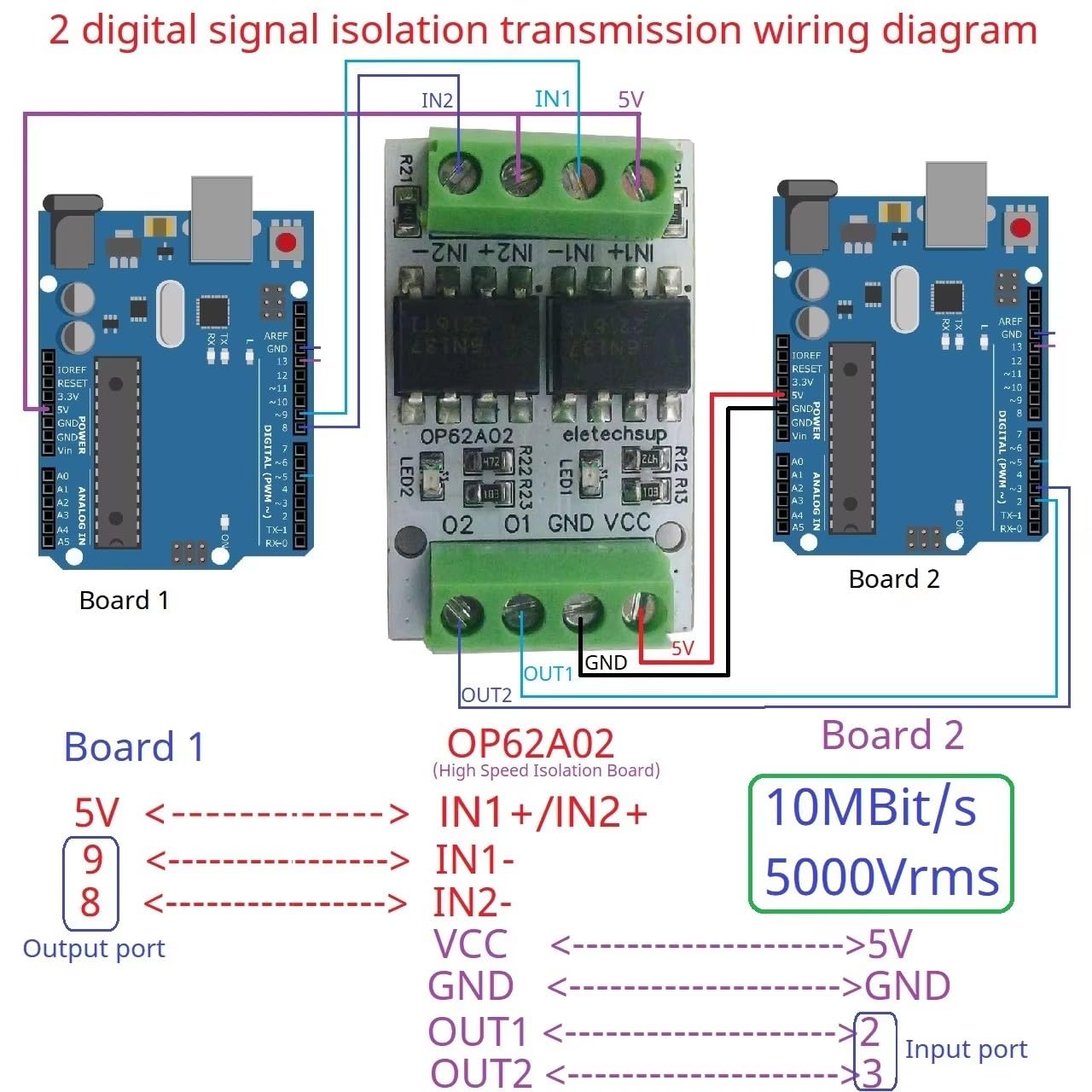

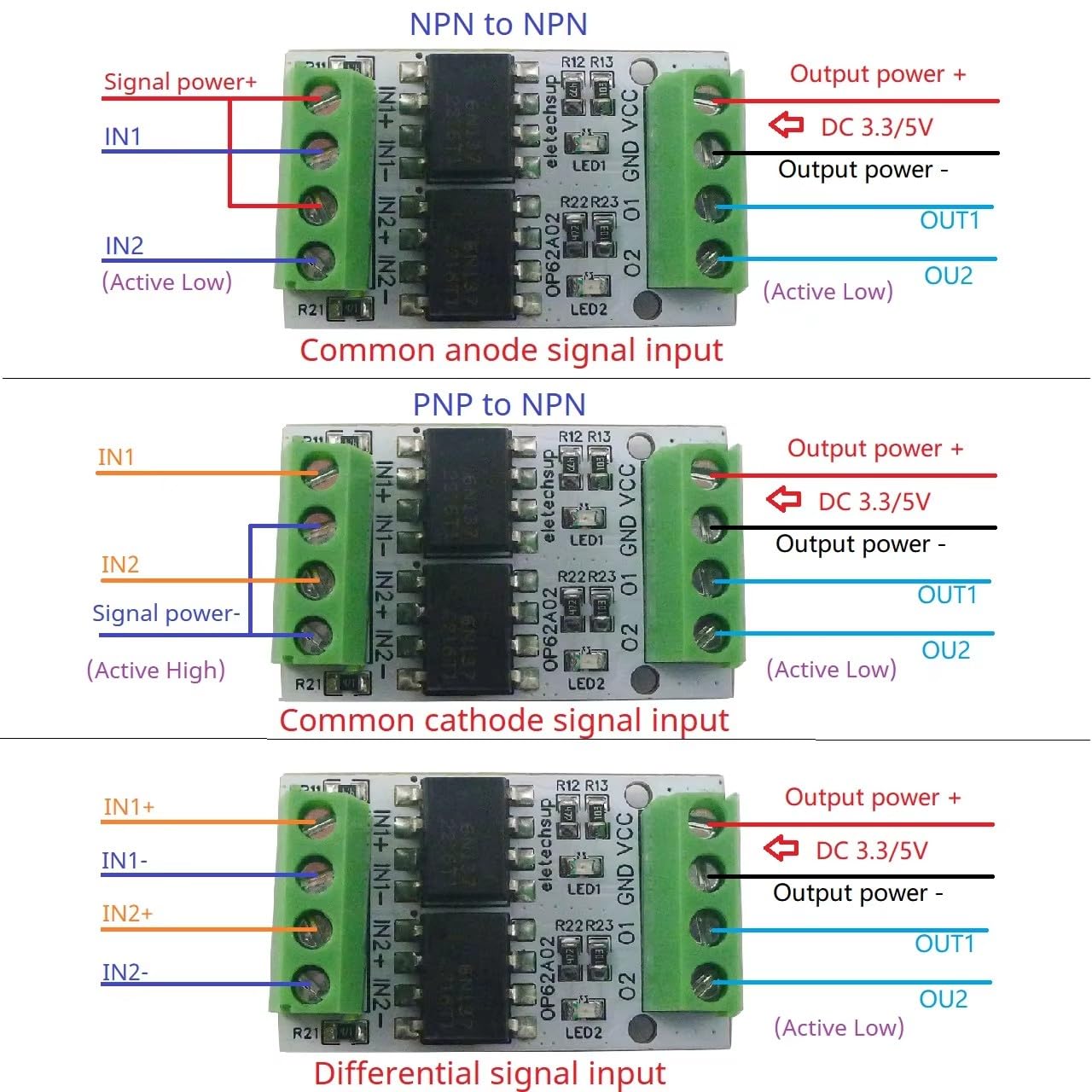

FeaturesThis is a 2-channel high-speed photoelectric isolation module with a maximum transmission rate of up to 10MBit/s and input and output isolation of 5000Vrms. There are four wiring methods, non-inverting input, inverting input, differential in-phase input, and differential inverting input. Can be used in most 3.3V 5V level isolation situations.Working voltage: DC 3.3-5.5VInput level : 3.3-5VOutput level: 3.3-5VInput drive current: 3.3V/4MA; 5V/7MAOutput load current: 3.3V/5MA; 5V/8MAInput signal type: NPN/PNPOutput signal type: NPNIsolation voltage: 5000VSignal frequency: <10MhzProduct model: OP62A02Brand name: eletechsupWorking temperature: -40~+110 Degrees CelsiusConversion type: NPN to NPN; PNP to NPNSize: 35.5*22*5.7MM(No terminal),35.5*22*12MM(With terminal)Weight: 3.1grams(No terminal),6.5grams(With terminal)Application:3.3V LvTTL 5V TTL Convert each otherfor Arduiuo MEGA2560 ESP32 ESP8266 etc.Line receiver,data transmissionData multiplexingSwitching power suppliesPulse transformer replacementPin Description:IN1+:Signal Input 1+IN1- :Signal Input 1-IN2+:Signal Input 2+IN2- :Signal Input 2-VCC: Output Working Power+（DC 3-5.5V）GND: Output Working Power-O1: Signal Output 1O2: Signal Output 2There are three wiring methods. The input drive requires a current of more than 8MA. If you are not sure about the drive current of the input device, it is recommended to use the first wiring method.

• nput drive current: 3.3V/4MA; 5V/7MA
• Output load current: 3.3V/5MA; 5V/8MA
• Input signal type: NPN/PNP
• Output signal type: NPN
• Isolation voltage: 5000V
• Signal frequency: <10Mhz
