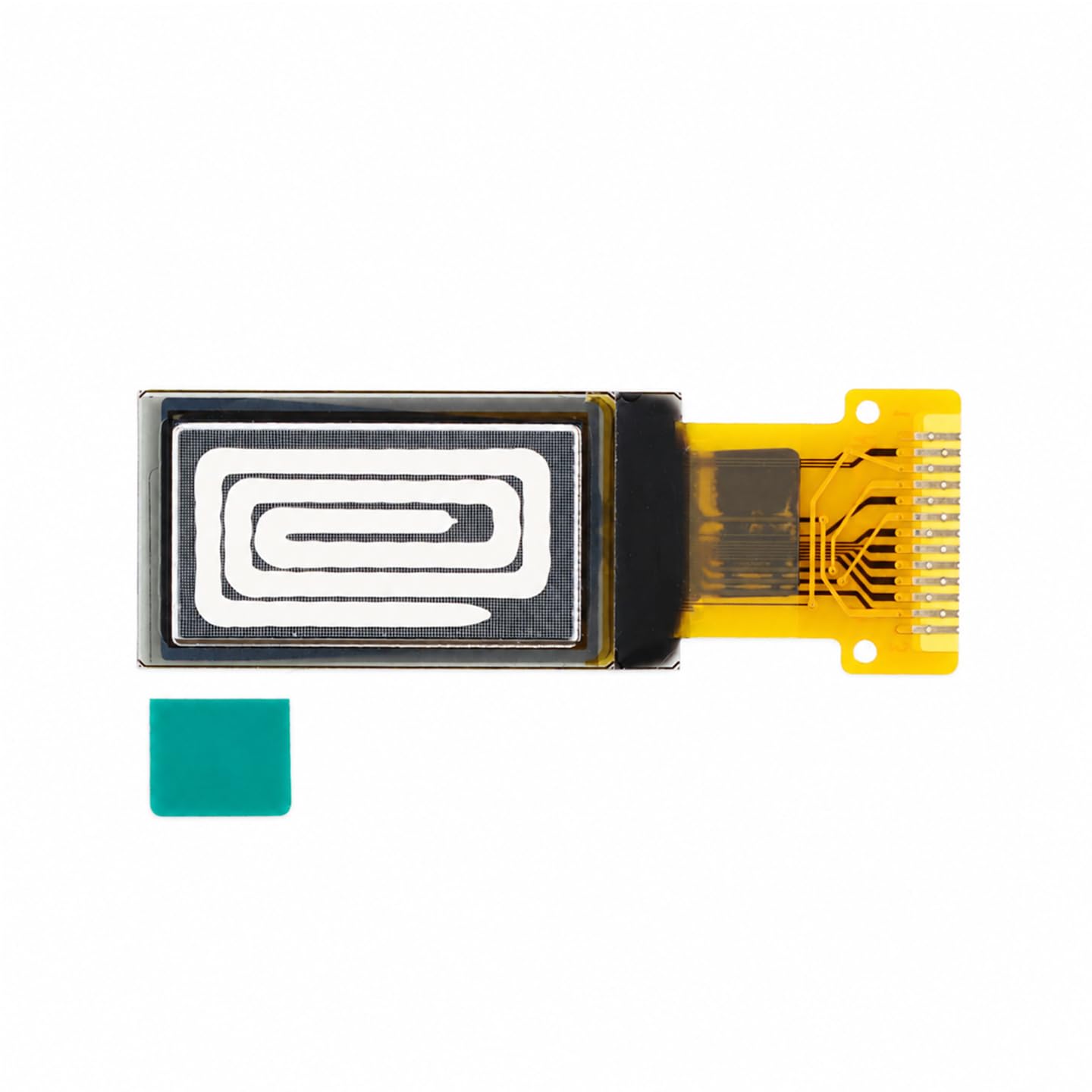

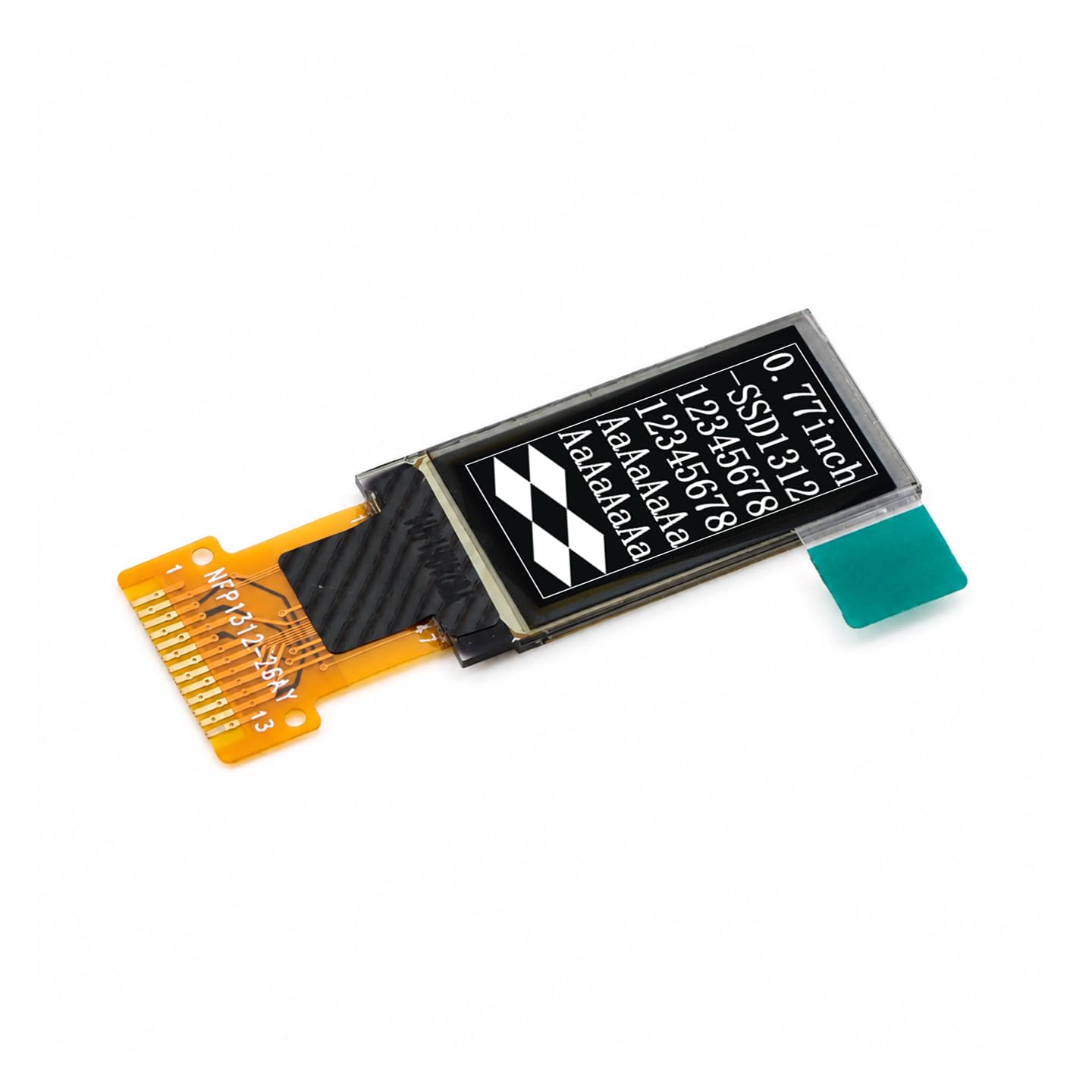

3Pcs 0.77 Inch 128x64 OLED Display Module SSD1312 Driver 13-Pin White
Product details
| Management number | 250057991 | Release Date | 2026/09/17 | List Price | US$4.00 | Model Number | 250057991 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
0.77 Inch OLED Display Module, 128x64 White OLED Bare Panel with SSD1312 Driver, Serial Interface, 13-Pin Solder-Mount Screen for DIY Electronics and Embedded Display ProjectsProduct ParametersModule Type: 0.77-inch OLED, 13-pin solder-mountResolution: 128 x 64Control Chip: SSD1312Interface Type: Serial interfaceDisplay Color: WhiteDisplay Area: 9.26 x 17.26 mmPanel Dimensions: 12.13 x 23.6 x 1.22 mmPixel Pitch: 0.135 x 0.145 mmPixel Size: 0.115 x 0.125 mmNumber of Pins: 13-pinPin Pitch: 0.7 mmViewing Angle: Full viewing angleOperating Voltage: 3.3VOperating Temperature: -40°C to 70°CPin DescriptionPin1：NCPin2：VPPPin3：VCOMHPin4：VDDPin5：IM1Pin6：IREFPin7：CSPin8：RESPin9：DCPin10：D0Pin11：D1Pin12：VSSPin13：NCApplicationsStatus bar displays; Multi-line text prompts; Embedded control panels; Instrument and meter displays; DIY electronics projects; Prototype development; Portable electronic devices.
- High-Resolution 0.77-Inch OLED Panel: This 0.77-inch monochrome OLED display offers a 128×64 resolution for crisp white text, symbols, menus, and graphics, making it a great choice for compact electronic devices and DIY display applications.
- SSD1312 Driver with SPI Serial Interface: Equipped with the SSD1312 control chip and SPI interface, this OLED panel supports efficient data transmission and responsive display performance, suitable for projects that require faster screen updates and reliable communication.
- Bright White Display & Full Viewing Angle: The white OLED screen provides strong contrast, clear visibility, and a full viewing angle, allowing information to remain easy to read in different orientations and viewing positions.
- Slim Bare Panel for Embedded Integration: Measuring only 12.13 x 23.6 x 1.22 mm, with a 9.26 x 17.26 mm display area, this ultra-thin bare OLED panel is ideal for embedded designs, portable instruments, smart devices, wearable electronics, and miniature control systems.
- 13-Pin Soldered FPC Connection: Designed with a 13-pin solder-mount FPC connection and 0.7 mm pitch, this display offers a stable hardware connection for custom PCB assembly. It operates at 3.3V and supports -40°C to 70°C working temperature for versatile applications.
| ASIN | B0H7HY3LNH |
|---|---|
| Brand | MakerCircuit |
| Color | 13PIN |
| Screen Size | 0.77 inches |
| Manufacturer | MakerCircuit |
| Native Resolution | 128x64 |
| Included Components | OLED Module |
