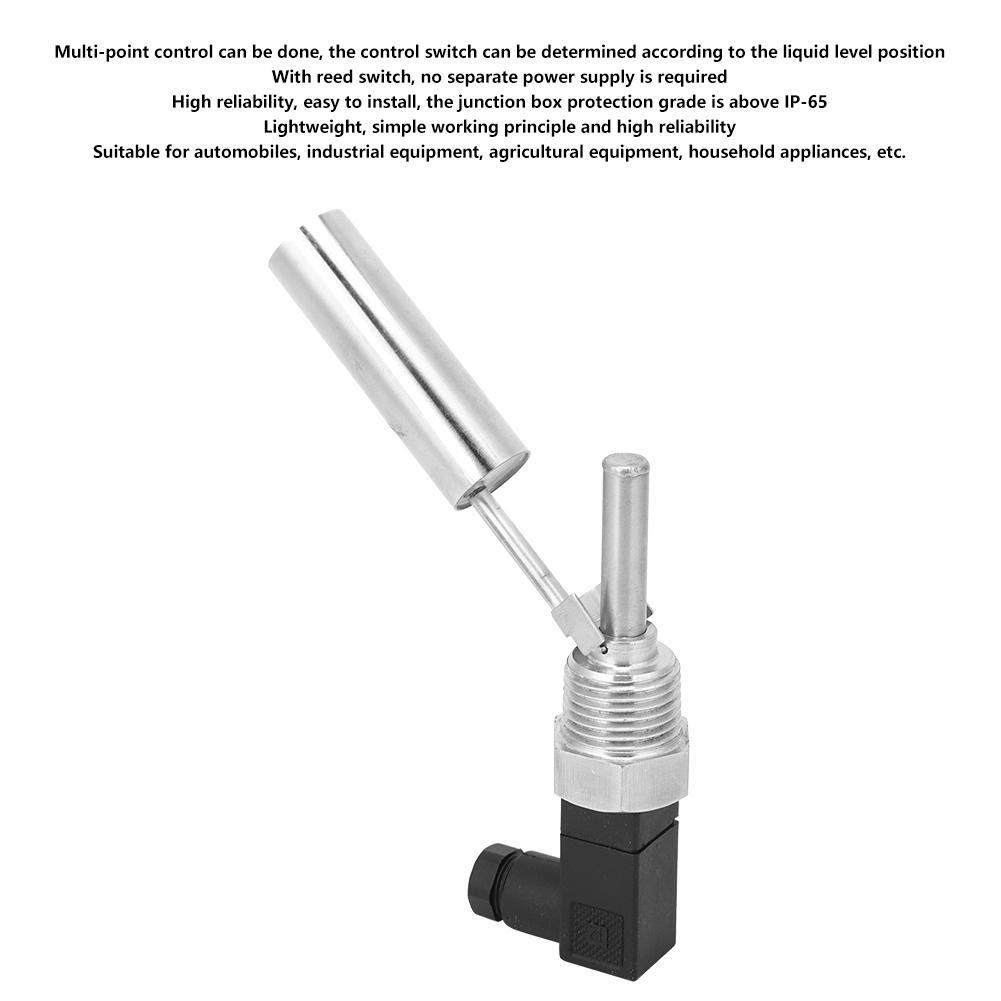

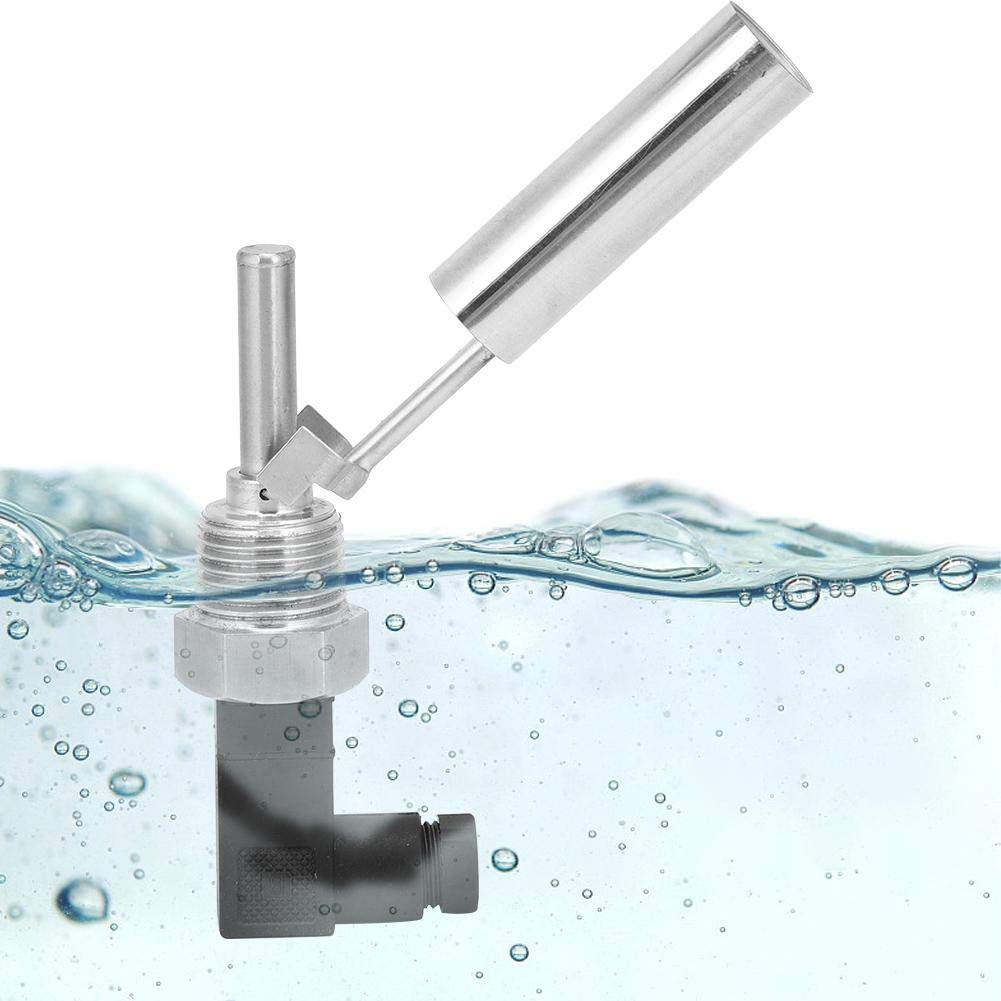

Duckbill Side-Mounted Water Level Sensor, 304 Stainless Steel G1/2” Threaded Tanks Horizontal Liquid Float Switch, 2 Bar Load for Aquariums Fish Tank Hydroponics Pool, DC 0-220V

Feature: 1. Suitable for automobiles, industrial equipment, agricultural equipment, household appliances, etc. Specification:Item Type: Duckbill Float SwitchContact Capacity: 10W (low pressure) / 50W (high pressure) Working Voltage: 0-220 (V) Working Current: 0.5-1.5 (A) Maximum Temperature Resistance: 120(℃) Maximum Withstand Voltage: 0.2(Mpa) Material: 304 stainless steel Thread: G1/2"Size: Approx. 108 x 17 x 55.5mm / 4.3 x 0.7 x 2.2in 15mm / 0.6in Working Principle: The small float switch, small liquid level controller and liquid level sensor are mainly composed of a magnetic reed switch and a float. There are magnetic materials in the float. When the float moves up and down with the measured liquid level, the magnetic reed switch is touched to detect the liquid level position. Package List:1 x Duckbill Float Switch

• Multi-point control can be done, the control switch can be determined according to the liquid level position
• With reed switch, no separate power supply is required
• High reliability, easy to install, the junction box protection grade is above IP-65
• The material is stainless steel SUS304, can be used in high temperature and high pressure places, suitable for different density, different acid and alkali, different pressure and temperature
• Lightweight, simple working principle and high reliability
