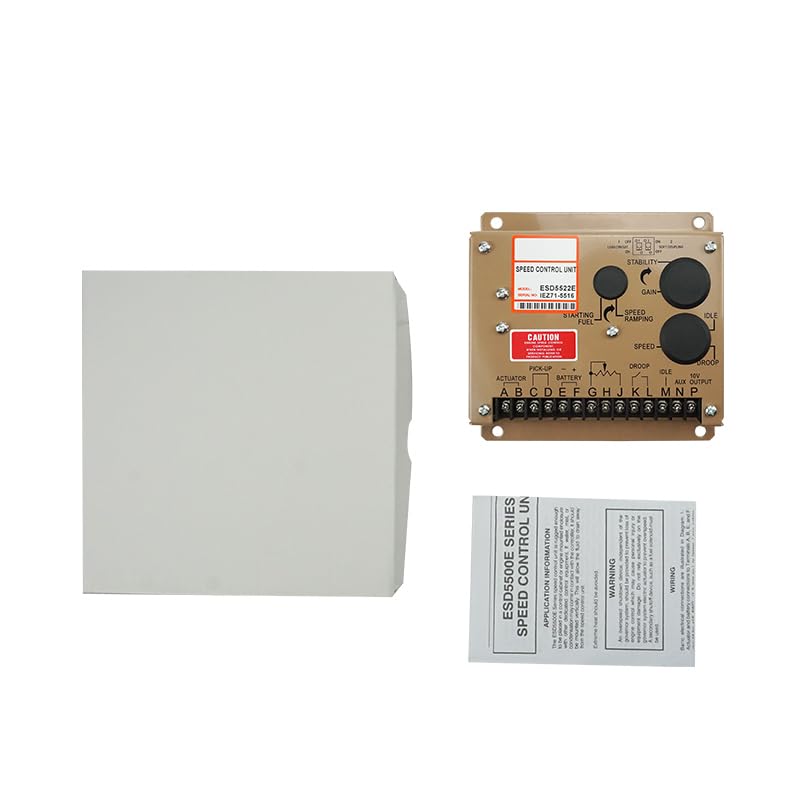

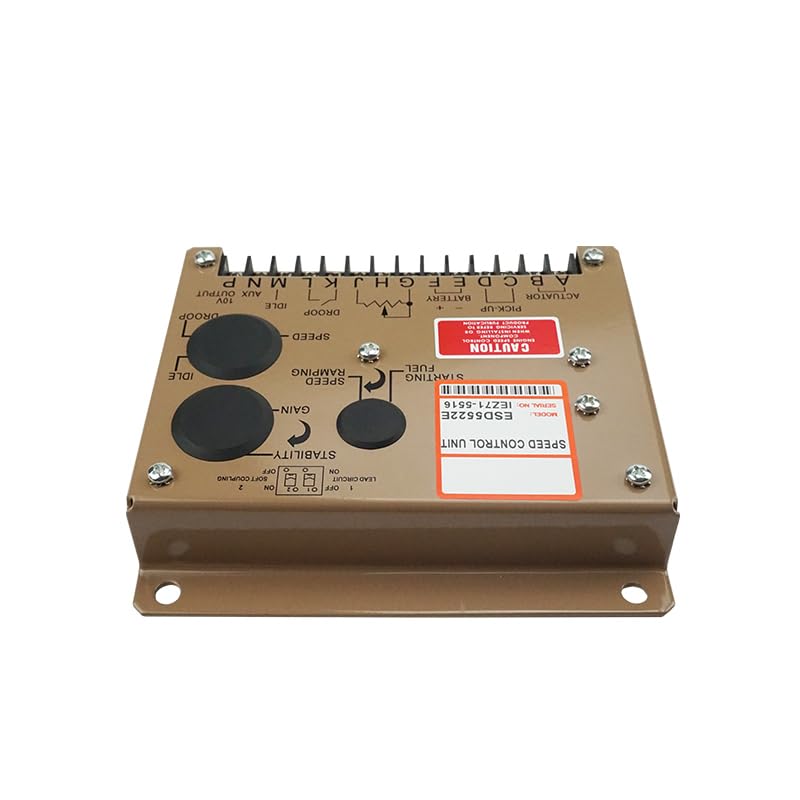

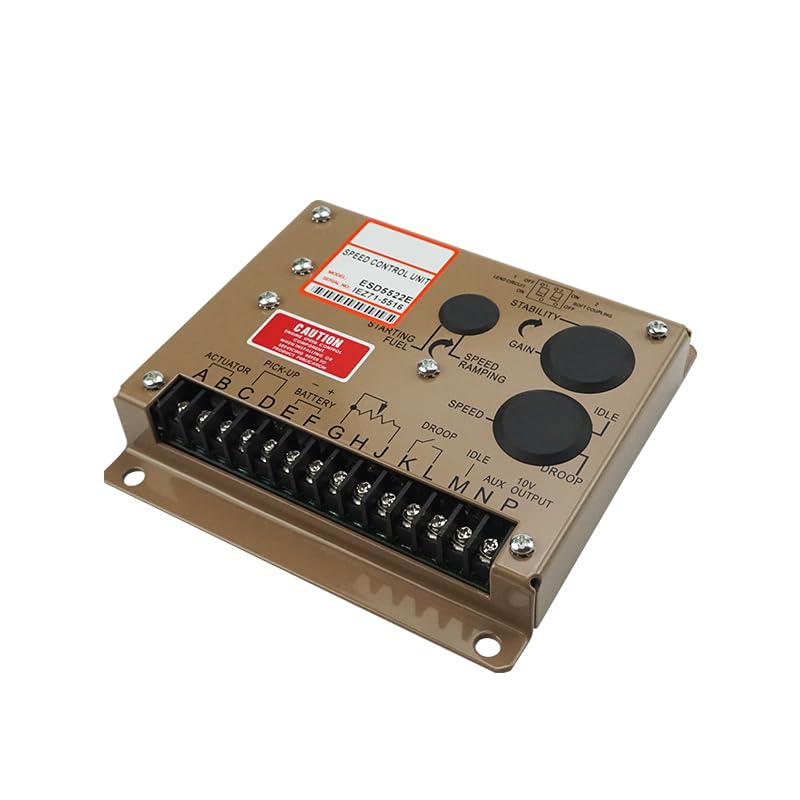

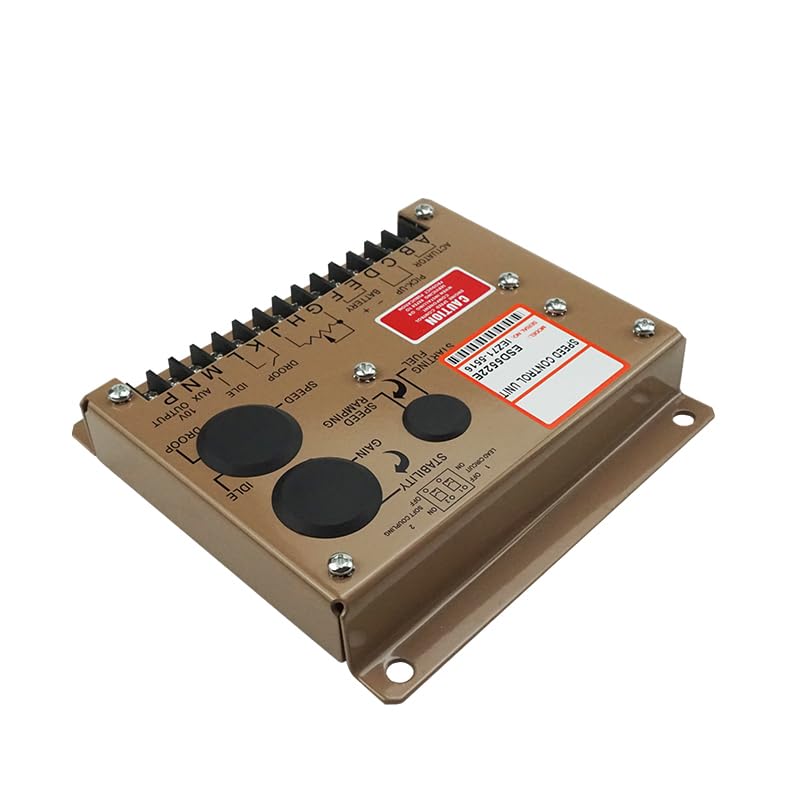

ESD5522E Generator Speed Control Governor Unit for Diesel Engine Gensets

The partsofgenerator ESD5522E electronic speed controller is a rugged speed control governor designed to regulate engine speed for generator sets and diesel engine applications. It provides fast and precise response to transient load changes, maintaining isochronous operation with a steady-state stability of ±0.25% or better. The unit features built-in starting fuel and speed ramp adjustments, which help reduce engine exhaust smoke prior to reaching operating speed. Operating within a continuous frequency range of 1K Hz to 7.5K Hz, the ESD5522E includes droop regulation adjustable from 1% to 5%. It is compatible with proportional electric actuators (excluding ACB2001) and can be mounted directly in a control cabinet or engine enclosure.

• COMPATIBILITY: Electronic speed control governor unit model ESD5522E designed for generator sets and engine speed regulation applications.
• STABILITY & PERFORMANCE: Isochronous operation with steady-state stability of ±0.25% or better across a continuous speed range of 1K Hz to 7.5K Hz.
• EMISSION & ACCELERATION CONTROL: Features adjustable starting fuel levels and speed ramping to minimize engine exhaust smoke during startup.
• ELECTRICAL SPECIFICATIONS: Speed drift with temperature within ±1% maximum; droop range adjustable from 1% to 5% regulation.

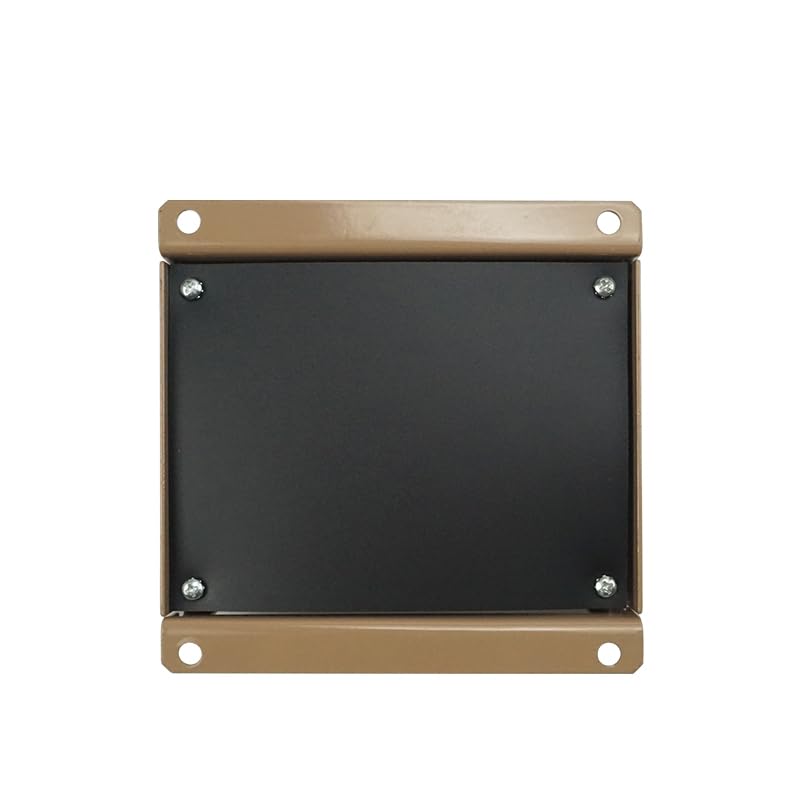

• INSTALLATION: Suitable for mounting in control cabinets or engine-mounted enclosures; compatible with most proportional actuators except ACB2001.
