ICUIXIAN 40x40 Seamless HDMI Matrix Switch Video Wall Controller 6x6-5x8

40x40 Seamless HDMI Matrix Switch Video Wall Controller 6x6-5x8 PIP Customizable 40-in 40-out HDMI Multifunctional Video Processor Switcher/Splitter This video processor employs an ultra-high-definition distributed, fully interactive mode and is specifically designed for ultra-large command centers. The product is primarily used in large-scale public security and traffic police command centers, monitoring and process visualization platforms in large modern factories, and command facilities in ultra-large commercial complexes. The 40 input 40 output HDMI matrix video wall utilizes Huawei HiSilicon’s professional-grade video processing chips—industry-leading dedicated video SoCs designed for H.265 standard and 4K ultra-high-definition signal processing, delivering crystal-clear, high-definition images. The unit runs on an embedded Linux system with a modular design and a fully interactive hardware architecture, ensuring stable system operation. It supports 4K output and offers functions such as splitting, switching, arbitrary multi-window tiling, picture-in-picture, roaming, overlay, zooming, pop-up windows, subtitles, and patrol. Features of the 40x40 HDMI Matrix Video Wall Controller 6x6-5x8 1. Runs on the Linux operating system for secure and stable operation; 2. Video Wall Processor Supports input resolutions up to 3840×2160@30Hz and output resolutions up to 3840×2160@30Hz, with backward compatibility; 3. Features a distributed architecture for easy cabling and simplified maintenance; 4. Housed in a 4U rack-mount chassis; 5. HDMI Matrix 18x18 Supports audio embedding and de-embedding control; 6. 40x40 HDMI Matrix Switch Supports arbitrary splitting and merging of video images; 7. Output ports support 1, 4, 9, 16, or 25-way splitting; 8. The unit supports 16 layers; 9. Text overlay function allows for arbitrary modification of input source signals; 10. HDMI Matrix Video Wall Supports network-controlled keyboards and PC software operation; 11. Built-in database enables export and import of user-configured parameters and video content; 12. HDMI Matrix Multi-View Supports scenes, grouping, automatic multi-screen cycling, and automatic single-screen cycling; 13. Features a modular card-based structure with support for up to 256 output service slots; multiple units can be cascaded to form a single system. Each chassis allows for flexible adjustment of output module configurations based on the large-screen installation site, facilitating the shortest possible cable layout for the display control system while simplifying system maintenance; 14. HDMI Matrix Supports LED text display functions, including built-in scrolling text and static text displays; 15. HDMI Matrix Switch Video Wall Controller Supports quick operation switching between tablets and mobile phones; 16. HDMI Matrix Video Wall Controller Supports multi-unit cascading to enable unified management and operation of an extremely large number of channels; 17. Personalized management features, with separate permissions for standard users and administrators; 18. Supports windowing and roaming functions; 19. Supports visual operation, allowing users to view the large screen display content in sync with a computer or tablet and preview input source videos.

• ①【Seamless 40x40 HDMI Matrix Multi-view Video Wall Controller 6x6-5x8：】The 40x40 hdmi matrix video wall controller can function simultaneously as both an HDMI matrix 40x40 and a video wall controller 6x6-5x8, enabling rapid switching between 40 input devices and 40 output displays in matrix mode. All 40 output ports can display the same or different content, and video wall mode is suitable for displaying content across 40 connected TVs.
• ②【HDMI Multi-Function Multi-Screen Video Processor：】The device supports 1/4/6/8/9/16/25-view split-screen display, allowing input signals to be displayed on a single monitor. It offers flexible video splitting and merging capabilities, featuring 16-window display, splitting, switching, arbitrary multi-window tiling, picture-in-picture, roaming overlay, zooming, and stretching functions.
• ③【HD Resolution Compatibility：】40 input 40 output Video Matrix Processor Inputs support up to 3840x2160@30Hz, while outputs support up to 3840x2160@30Hz with downward compatibility. The device employs a distributed architecture for convenient cabling and simple maintenance, and supports audio embedding and de-embedding control.

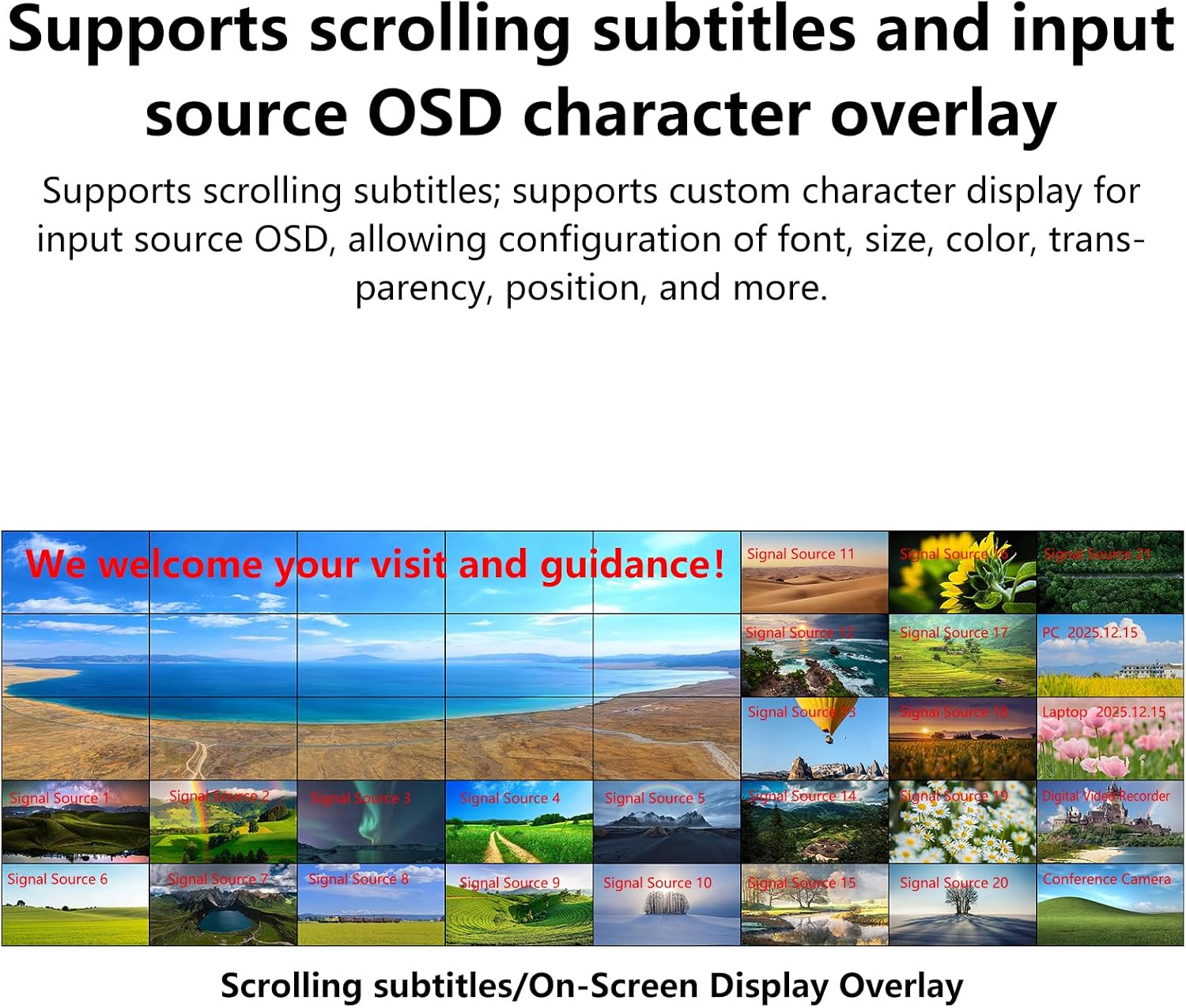

• ④【Control Methods and Overlay Functions：】Can be controlled via a web interface or RS485 from computers, tablets, or smartphones; supports scene cycling, input source video preview, scrolling subtitles, OSD character overlay on input channels, scene rotation, and power-off memory functions.
• ⑤ Multi-View Matrix + Video Wall + Video Switcher/Distributor Processor: An 40-input 40-output video matrix processor offering a variety of port options, including HDMI, SDI, and VGA. The video wall controller supports the display of 40 TVs in a video wall configuration, with over 60 different layout modes. Video wall mode and matrix mode can be displayed simultaneously, and features such as image overlay and stretching are also supported.
• Video Processor Employs An Ultra-Hd Distributed, Fully Interactive Mode, Specifically Designed For Ultra-Large Command Centers. The Product Is Primarily Used In Large-Scale Public Security And Traffic Police Command Centers, Monitoring And Process Visualization Platforms For Large Modern Factories, As Well As Ultra-Large Commercial Complexes And Various Venues Such As Shopping Malls, Retail Stores, Exhibitions, And Commercial Offices.
• Offer the SDI-HDMI-VGA port option：This video processor features a modular card design. We offer a selection of commonly used card sets, including (but not limited to) HDMI, SDI, and VGA. You can also customize your setup by combining different card sets—for example, using an HDMI card set for input and an SDI card set for output—to meet your specific needs.
