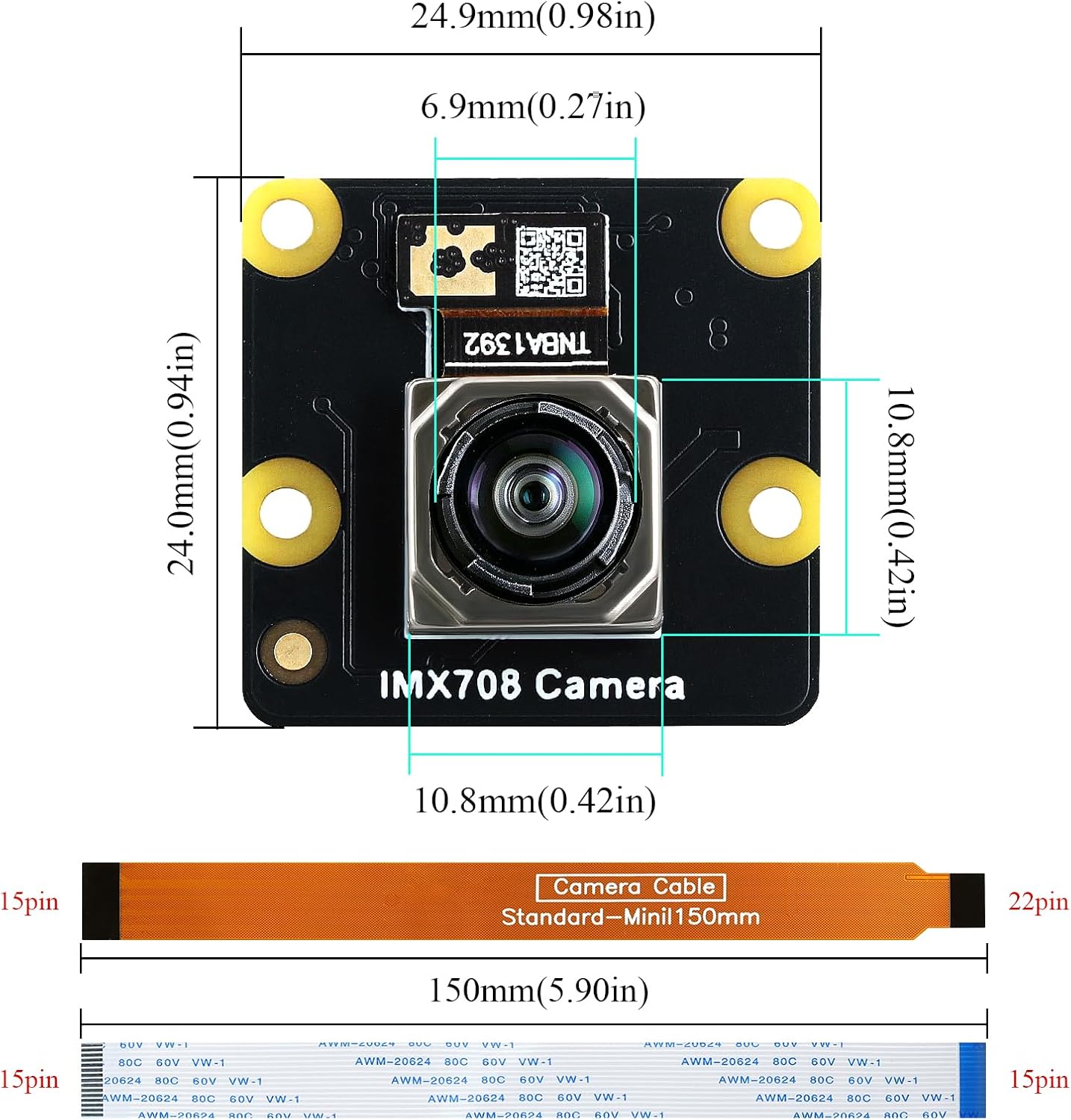

IMX708 12MP Camera Module, Night Vision Camera (Noir) 120° FOV Auto-Focus, High Dynamic Range (HDR) Includes 15-15pin, 15-22pin Cable Compatible with Raspberry Pi 5/4B+/3B+/3B/Zero

Product Information Image size：Diagonal 7.402 mm (Type 1/2.43) Number of active pixels：4608 (H) × 2592 (V) approx. 11.94 M pixels Chip size：7.288 mm (H) × 4.930 mm (V) Unit cell size：1.40 µm (H) × 1.40 µm (V) Optical Format：1/2.43"" Focal Length：2.75 mm F/NO：2.2 Angle of View：D= 120°/ H= 102°/ V= 67° TV-Distortion：<11.6% Relative Illuminance：24.4% Visible light Camera：IR= NO IR

• Compatible with Raspberry Pi 5, 4B, 3B+, 3B, 2B, 1B+, Zero, and other models. The product comes with two ribbon cables: a 15-pin to 15-pin FPC adapter cable and a 22-pin to 15-pin FPC adapter cable.
• It can capture high-definition still images with a resolution of 4608×2592 and a diagonal field of view of 120°, making it ideal for wide-angle, open scenes. It supports multiple video recording modes, including 1080p@50fps, 720p@100fps, and 480p@120fps, to meet the filming requirements of various projects.
• This product is the NoIR night vision version. Images captured during the day will have a reddish tint, while nighttime footage will be in black and white. It requires an infrared illuminator (sold separately). Please confirm your intended use before purchasing.
• With built-in autofocus, it automatically locks onto the subject to deliver clear images, whether capturing fine details up close or monitoring scenes from a distance. It also supports HDR (High Dynamic Range) imaging, which preserves image details in both highlights and shadows to reproduce realistic scenes. When HDR is enabled, it outputs images with a maximum resolution of approximately 3 megapixels; in non-HDR mode, the maximum resolution reaches 12 megapixels.
• Featuring a CSI serial interface, it transmits 12MP image data to the processor quickly and reliably via the high-bandwidth CSI bus, while also supporting a 3.3V power output. Suitable for programming education, experimental monitoring, video recording, and other applications, it is an ideal choice for Raspberry Pi camera projects.
