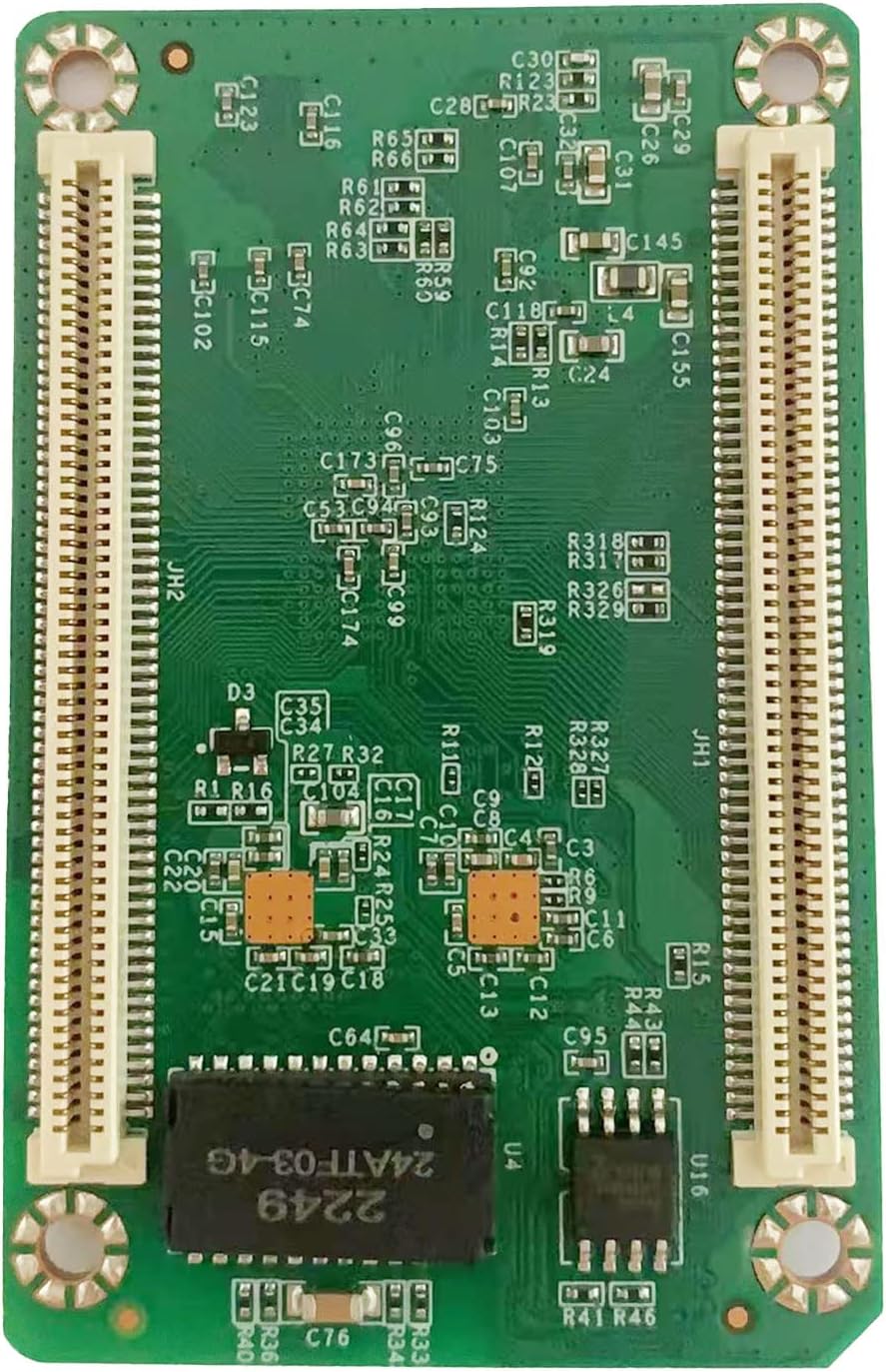

Novastar A5S Plus Receiving Card Led Display Controller Card (Updated Version of A5S)

Novastar A5s Plus Receiving Card Specifications: Improvements to Display Effect 1. Color Management Support standard (Rec.709 / DCI-P3 / Rec.2020) and custom color gamuts, enabling more precise colors on the screen. 2. 18bit+ Improve the LED display grayscale by 4 times to avoid grayscale loss due to low brightness and allow for a smoother image. 3. Pixel Level Brightness and Chroma Calibration Work with NovaStar's calibration system to calibrate the brightness and chroma of each pixel, effectively eliminating differences and enabling high consistency for both brightness and chroma. 4. Quick Adjustment of Dark or Bright Lines The different brightness of seams caused by splicing of modules or cabinets can be corrected to improve the visual experience. The correction is easy and takes effect immediately. 5. Multi-batch Adjustment Adjust the brightness of cabinets or modules to minimize display discrepancies caused by variations in production batches. 6. Low Latency For PWM driver ICs, the latency of video source on the receiving card end can be reduced to 1 frame. To use low latency with DCLK continuous PWM driver ICs, a customized firmware is required. 7. 3D Work with the controller that supports 3D function to enable 3D output. 8. Individual Gamma Adjustment for RGB Working with NovaLCT and the controller that supports this function, the receiving card supports individual adjustment to red gamma, green gamma and blue gamma, which can effectively control image non-uniformity at low grayscale conditions and white balance offset, allowing for a more realistic image. 9. 90° Image Rotation The display image can be rotated in multiples of 90° (0°/90°/180°/270°).

• Loading capacity: 512×384 pixels
• Parallel RGB data groups: 32
• Serial data groups: 64
