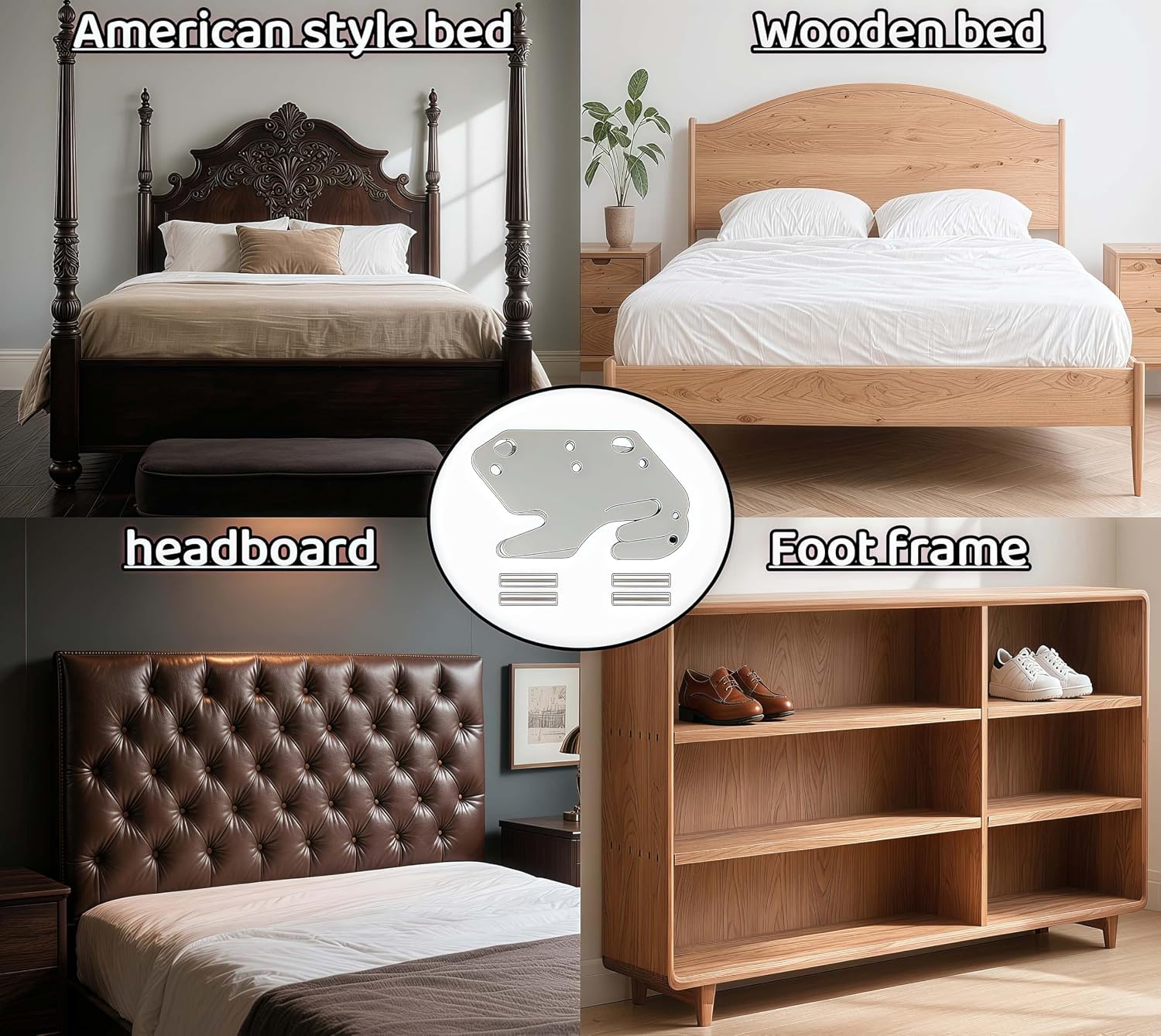

Wood Bed Rail Hook Plates with Mounting Pins, 2 Pack

Universal Wooden bed frame metal hook plate Material: Zincplated iron Mounting hole diameter: 11/32 inches Distance between two pins: 2 inches Packing includes: 2 heavy duty hook plates and 4 Mounting Pins Thickened Metal Material : The bed frame hooks is made of thickened steel, can carry more than 200kg. Repair an existing wooden bed rail connection or prepare new wooden side rails with the Duisanji hook-plate set. Each steel plate features a double-hook profile designed to engage the horizontal receiving pins located inside a compatible slotted headboard or footboard post. The included metal mounting pins secure the hook plates within properly prepared wooden rail ends. Compatibility is determined by the existing connection dimensions—not by mattress size or bed style alone. Before ordering, remove and measure the original hardware when possible. Compare the plate length, width and thickness; the center-to-center hook spacing; hook projection and backset; mounting-pin positions; and the dimensions of the mortise in the wooden rail. These plates are not universal. They are not intended to convert a bolt-on metal bed frame into a hook-on frame, and they will not fit interlocking surface-mount brackets unless the complete connection geometry matches. For replacement work, inspect the wooden rail and bedpost for cracks, enlarged holes or damaged receiving pins. Replacing the metal plate alone will not correct weakened or split wood. For new construction, accurate slot cutting and pin-hole alignment are required. Furniture-repair or woodworking experience is recommended. Keep the bed unloaded during installation. Confirm that both hooks seat fully and that the side rails are level before installing the slats, foundation or mattress. Recheck every connection after initial use and discontinue use if movement, cracking or deformation is observed. Package contents: 2 bed rail hook plates and 4 mounting pins. This quantity covers two rail ends; a typical bed with hook plates at both ends of two side rails requires four plates.

• FOR WOOD BED RAIL CONNECTIONS — Designed for repairing damaged hook plates or building wooden bed side rails that connect to compatible slotted headboard or footboard posts. The double-hook profile engages matching receiving pins inside the prepared post slot.
• FIT DEPENDS ON CONNECTION GEOMETRY — Compare the plate length, width, thickness, hook spacing, hook projection, mounting-pin locations and required slot depth with the original hardware. Similar-looking bed rail plates may use different hook spacing or backset and are not automatically interchangeable.
• HOOK-AND-PIN SYSTEM ONLY — Intended for mortised wooden rail ends and headboard or footboard posts with matching internal receiving pins. Not designed as a bolt-on metal bed-frame adapter, surface-mount bracket or replacement for interlocking two-piece bed-rail fasteners.
• WOODWORKING MAY BE REQUIRED — Replacement installation requires the existing mortise and pin holes to match. New construction may require measuring, routing or chiseling a slot and drilling accurately aligned holes. Test-fit each plate before inserting the mounting pins, then verify that both hooks seat fully without forcing the connection.
• TWO-PLATE REPAIR SET — Includes 2 steel bed rail hook plates and 4 metal mounting pins, covering two wooden rail ends. One package can typically connect two side rails to either one headboard or one footboard; replacing all four rail-end plates generally requires two packages. (Wood rails, headboard, footboard, receiving pins, screws, tools and instructions are not included.)
